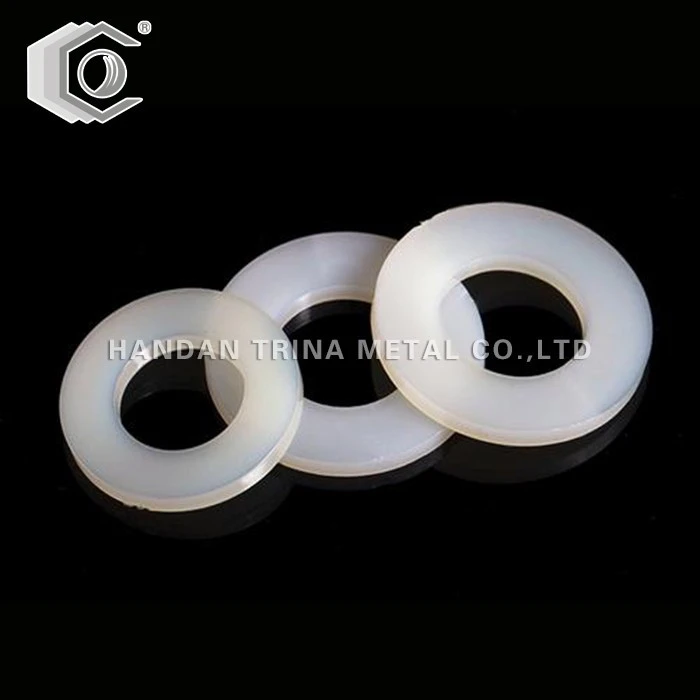

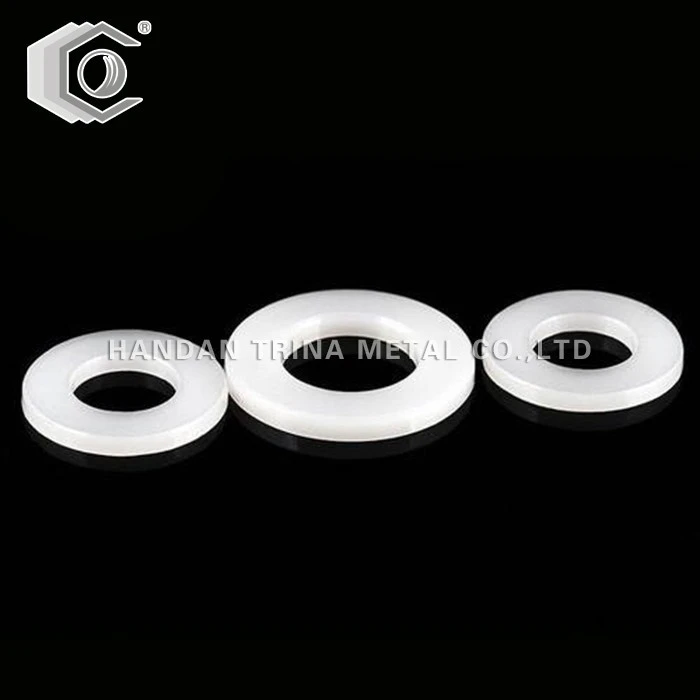

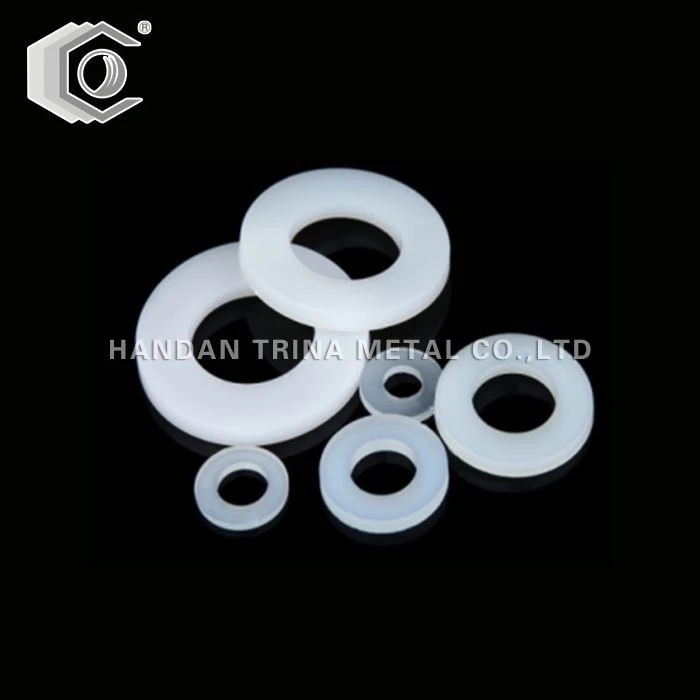

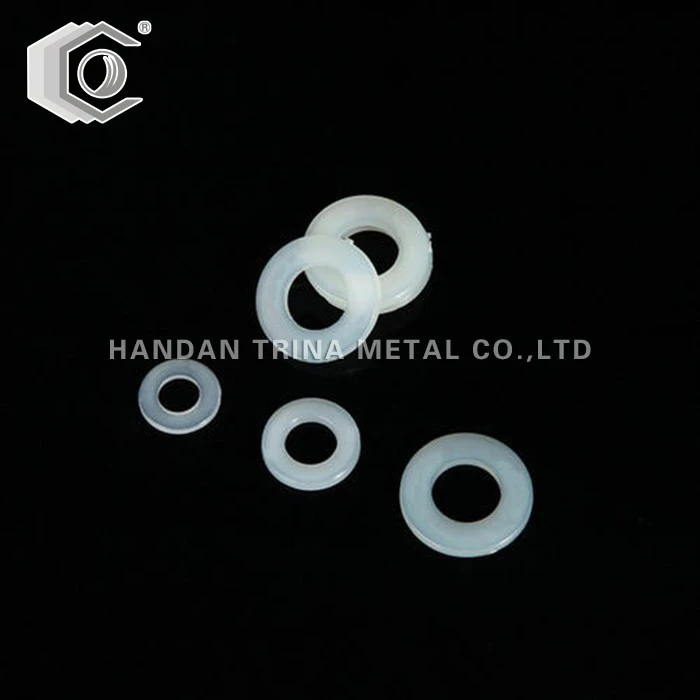

DIN125 Plastik Nayilonn Flaf Washer

M

Boulon korespondan

M3

M3.5

M4

M5

M6

M7

M8

M10

M12

M14

M16

D

Minimom

3.2

3.7

4.3

5.3

6.4

7.4

8.4

10.5

13

15

17

Vale maksimom

3.38

3.88

4.48

5.48

6.62

7.62

8.62

10.77

13.27

15.27

17.27

kolasyon

Vale maksimom

7

8

9

10

12

14

16

20

24

28

30

Minimom

6.64

7.64

8.64

9.64

11.57

13.57

15.57

19.48

23.48

27.48

29.48

h

nominal

0.5

0.5

0.8

1

1.6

1.6

1.6

2

2.5

2.5

3

Vale maksimom

0.55

0.55

0.9

1.11

1.8

1.8

1.8

2.2

2.7

2.7

3.3

Minimom

0.45

0.45

0.7

0.9

1.4

1.4

1.4

1.8

2.3

2.3

2.7

Pwa /mpcs (kg)

0.119

0.155

0.308

0.443

1.02

1.39

1.83

3.57

6.27

8.62

11.3

Espesifikasyon

φ19

φ21

φ23

φ25

φ27

φ28

φ29

φ31

φ33

φ34

φ36

M

Boulon korespondan

M18

M20

M22

M24

M26

M27

M28

M30

M32

M33

M35

D

Minimom

19

21

23

25

27

28

29

31

33

34

36

Vale maksimom

19.33

21.33

23.33

25.33

27.33

28.33

29.33

31.39

33.62

34.62

36.62

kolasyon

Vale maksimom

34

37

39

44

50

50

50

56

60

60

66

Minimom

33.38

36.38

38.38

43.38

49.38

49.38

49.38

55.26

58.8

58.8

64.8

h

nominal

3

3

3

4

4

4

4

4

5

5

5

Vale maksimom

3.3

3.3

3.3

4.3

4.3

4.3

4.3

4.3

5.6

5.6

5.6

Minimom

2.7

2.7

2.7

3.7

3.7

3.7

3.7

3.7

4.4

4.4

4.4

Pwa /mpcs (kg)

14.7

17.2

18.3

32.3

43.7

42.3

40.9

53.6

77.4

75.3

94.3
