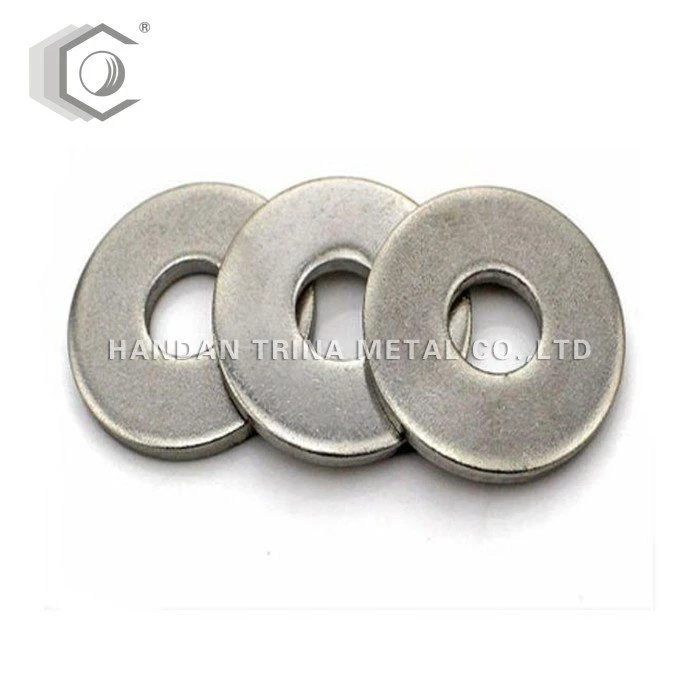

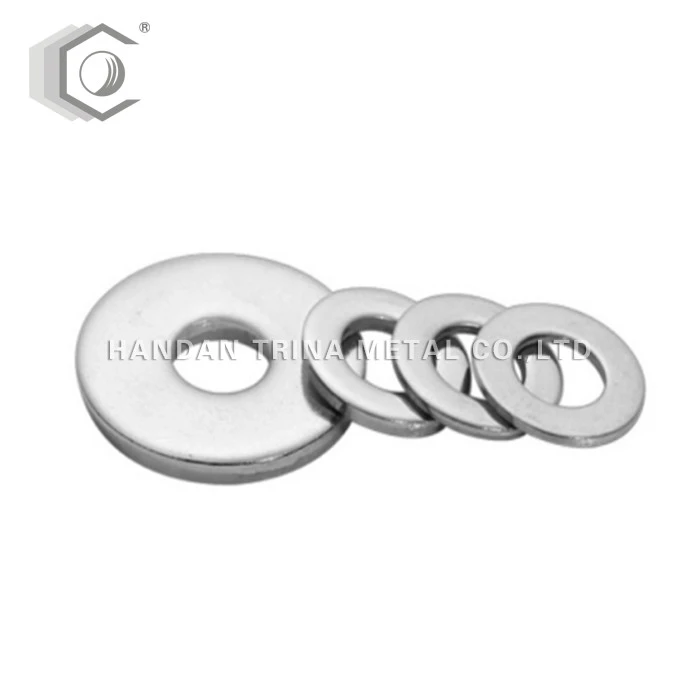

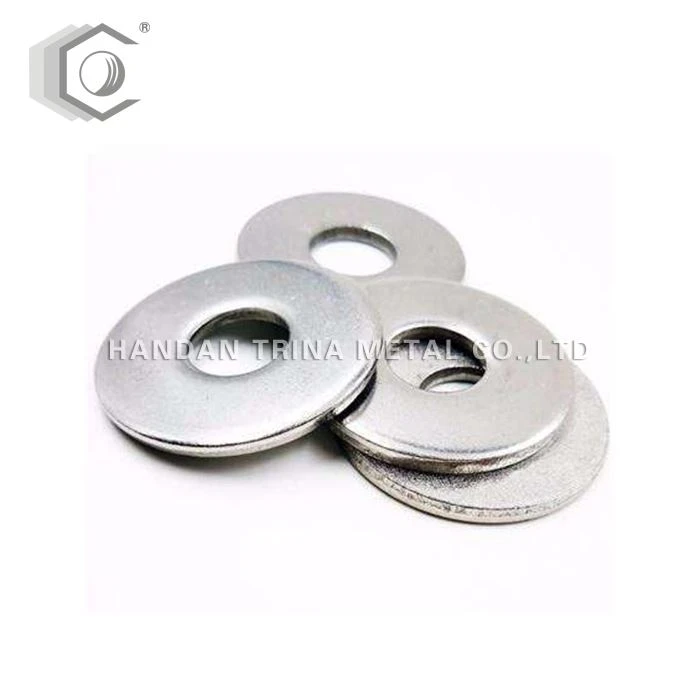

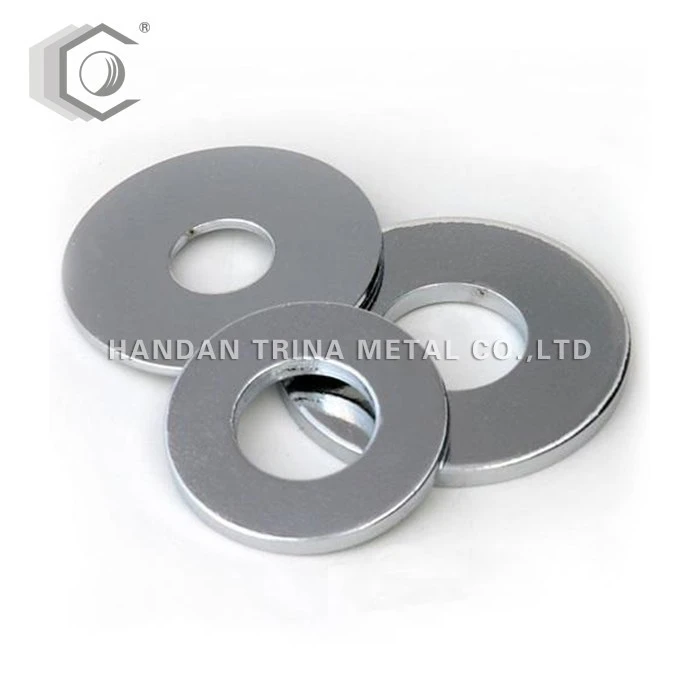

Downloads: φ6-φ36
Klas:4.8.8
Sifas: ZP / HDG / BLSCK / DACROMET
Espesifikasyon | φ3.2 | φ3.7 | φ4.3 | φ5.3 | φ6.4 | φ7.4 | φ8.4 | φ10.5 | φ13 | φ15 | φ17 | |
M | Boulon korespondan | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 |
D | Minimom | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | 13 | 15 | 17 |
Vale maksimom | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 7.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | |
kolasyon | Vale maksimom | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 20 | 24 | 28 | 30 |
Minimom | 6.64 | 7.64 | 8.64 | 9.64 | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | 27.48 | 29.48 | |
h | nominal | 0.5 | 0.5 | 0.8 | 1 | 1.6 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 |
Vale maksimom | 0.55 | 0.55 | 0.9 | 1.11 | 1.8 | 1.8 | 1.8 | 2.2 | 2.7 | 2.7 | 3.3 | |
Minimom | 0.45 | 0.45 | 0.7 | 0.9 | 1.4 | 1.4 | 1.4 | 1.8 | 2.3 | 2.3 | 2.7 | |
Pwa /mpcs (kg) | 0.119 | 0.155 | 0.308 | 0.443 | 1.02 | 1.39 | 1.83 | 3.57 | 6.27 | 8.62 | 11.3 | |
Espesifikasyon | φ19 | φ21 | φ23 | φ25 | φ27 | φ28 | φ29 | φ31 | φ33 | φ34 | φ36 | |
M | Boulon korespondan | M18 | M20 | M22 | M24 | M26 | M27 | M28 | M30 | M32 | M33 | M35 |
D | Minimom | 19 | 21 | 23 | 25 | 27 | 28 | 29 | 31 | 33 | 34 | 36 |
Vale maksimom | 19.33 | 21.33 | 23.33 | 25.33 | 27.33 | 28.33 | 29.33 | 31.39 | 33.62 | 34.62 | 36.62 | |
kolasyon | Vale maksimom | 34 | 37 | 39 | 44 | 50 | 50 | 50 | 56 | 60 | 60 | 66 |
Minimom | 33.38 | 36.38 | 38.38 | 43.38 | 49.38 | 49.38 | 49.38 | 55.26 | 58.8 | 58.8 | 64.8 | |
h | nominal | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
Vale maksimom | 3.3 | 3.3 | 3.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 5.6 | 5.6 | 5.6 | |
Minimom | 2.7 | 2.7 | 2.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 4.4 | 4.4 | 4.4 | |
Pwa /mpcs (kg) | 14.7 | 17.2 | 18.3 | 32.3 | 43.7 | 42.3 | 40.9 | 53.6 | 77.4 | 75.3 | 94.3 | |
Efe:
1. Ogmante zon nan kontak ant vis la ak machin nan.
2. Elimine domaj nan sifas la nan machin nan le pad la prentan se dechaje vis la. Le yo itilize, li dwe yon plat prentan ak yon pad plat. Pad la plat se akote sifas la nan machin nan, ak plas la prentan se ant pad la plat ak nwa la.
Kase plat yo se moso mens nan fom dives kalite itilize diminye friksyon, anpeche fwi, izole, anpeche demare, oswa presyon distribye. Anpil materyel ak estrikti gen eleman sa yo, ki yo te itilize fe dives kalite fonksyon ki sanble. Limite pa materyel la ak pwosesis fil threaded, sifas la sipo nan boulon ak lot fastener se pa gwo. Se poutet sa, yo nan lod yo diminye estres yo konpresif nan sifas la presyon-pote pwoteje sifas la nan pati a konekte, pad plat yo itilize.
